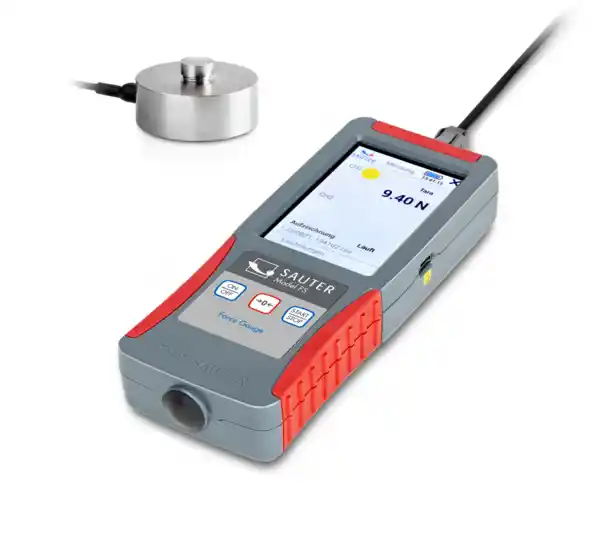

Force gauge set FS 2-100KRQ1

Premium force-measuring device FS 2 Measurement of forces in different tensile or compression directions possible with only one measuring device 3,5" touchscreen with touch pen Standard version with 2 measuring channels for external force sensors (subsequently expandable from 2 to 4) The specific data of an external sensor are stored directly in the connector Track function for continuous measurement display Peak value measurement Tolerance function Internal device memory (16 GB) USB interface for data transfer and power supply as standard Two-point adjustment with weights or numerical adjustment possible Supplied in a high-quality and robust system case (systainer® T-LOC) including plug-in power supply and USB cable type C Load cell made of stainless steel CR 10000-1Q1 Accuracy class in accordance with OIML C1 High precision (comprehensive Error 0,05% F.S.) Nominal sensitivity: 2 mV/V Protection against dust and water splashes IP68 Area of application: Compressive force measurements
