EC800 Laboratory/Tabletop Conductivity Meter

EC800 Laboratory/Tabletop Conductivity Meter
EC800 Laboratory/Tabletop Conductivity Meter
EC800 Laboratory/Tabletop Conductivity Meter
EC800 Laboratory/Tabletop Conductivity Meter
EC800 Laboratory/Tabletop Conductivity Meter
EC800 Laboratory/Tabletop Conductivity Meter
Actual product may differ from image New
EC800 Laboratory/Tabletop Conductivity Meter
EC800 Laboratory/Tabletop Conductivity Meter
EC800 Laboratory/Tabletop Conductivity Meter
EC800 Laboratory/Tabletop Conductivity Meter
EC800 Laboratory/Tabletop Conductivity Meter
EC800 Laboratory/Tabletop Conductivity Meter
EC800 Laboratory/Tabletop Conductivity Meter
Price excludes taxes and shipping charges.
£480.00

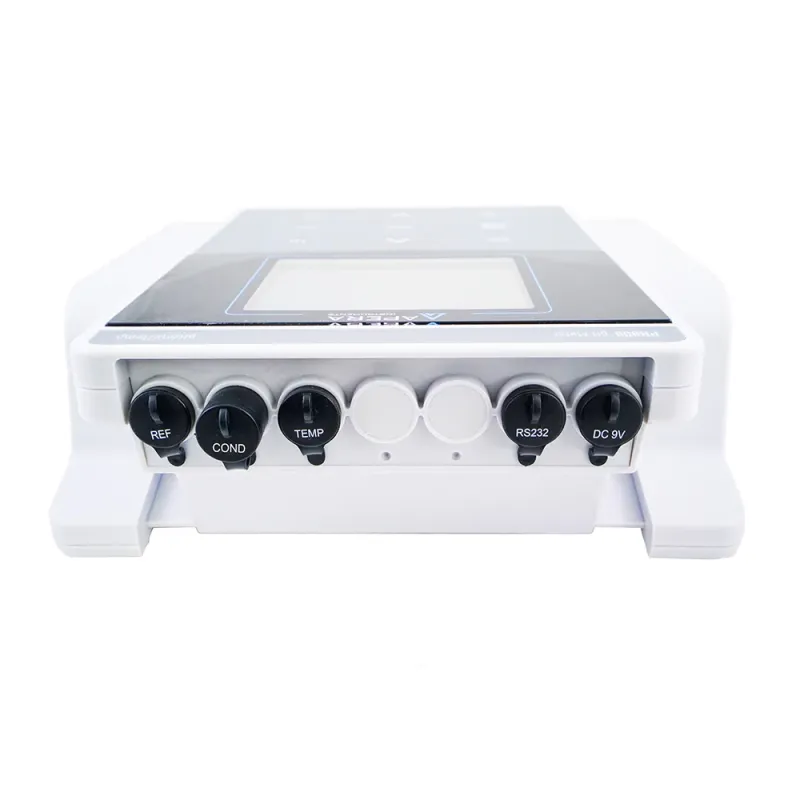

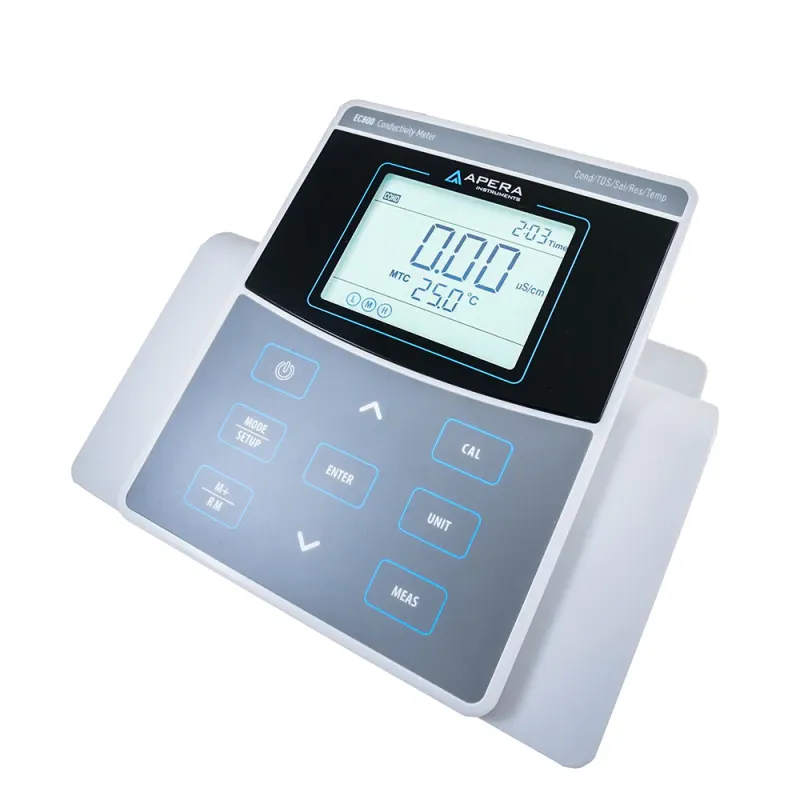

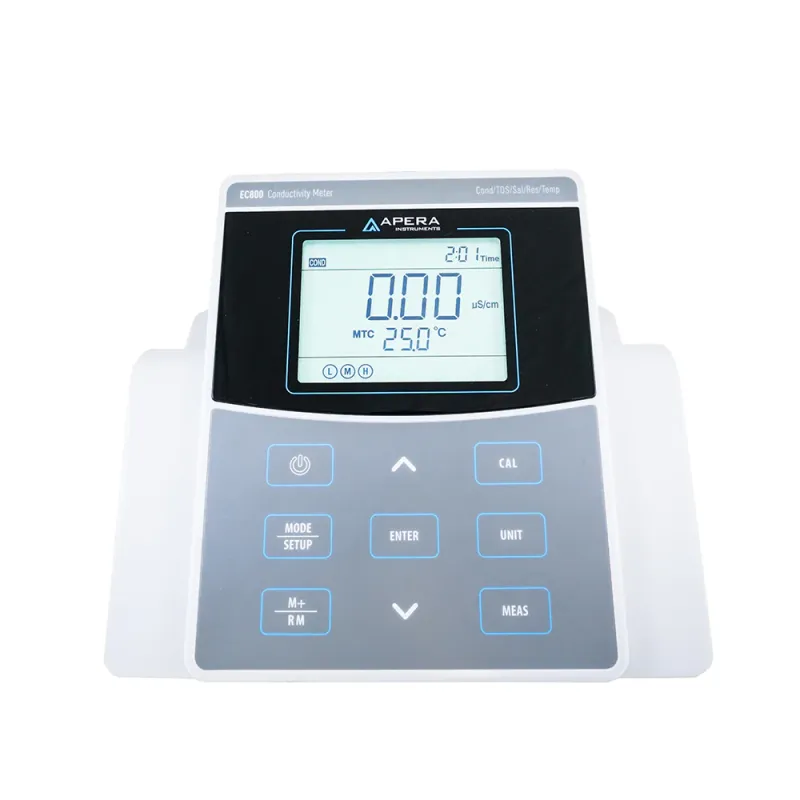

The Apera Instruments EC800 is a reliable and user-friendly benchtop conductivity meter designed for accurate measurements of conductivity, TDS, salinity, resistivity, and temperature in laboratory settings. Ideal for scientific research, environmental analysis, and quality control, the EC800 ensures high-performance results with minimal effort.


Equipped with the high-quality 2301T-F conductivity electrode featuring an integrated temperature sensor, the EC800 supports automatic temperature compensation and multi-point calibration to enhance measurement precision. Its large backlit LCD provides real-time display of all parameters, including calibration and stability status.


GLP-compliant data logging and USB output functions are included for efficient data management. A flexible electrode holder is also provided for added convenience during testing.


Key Features:


  • Measurement range: 0 to 2000 mS/cm
  • Accuracy: ±0.5% of full scale

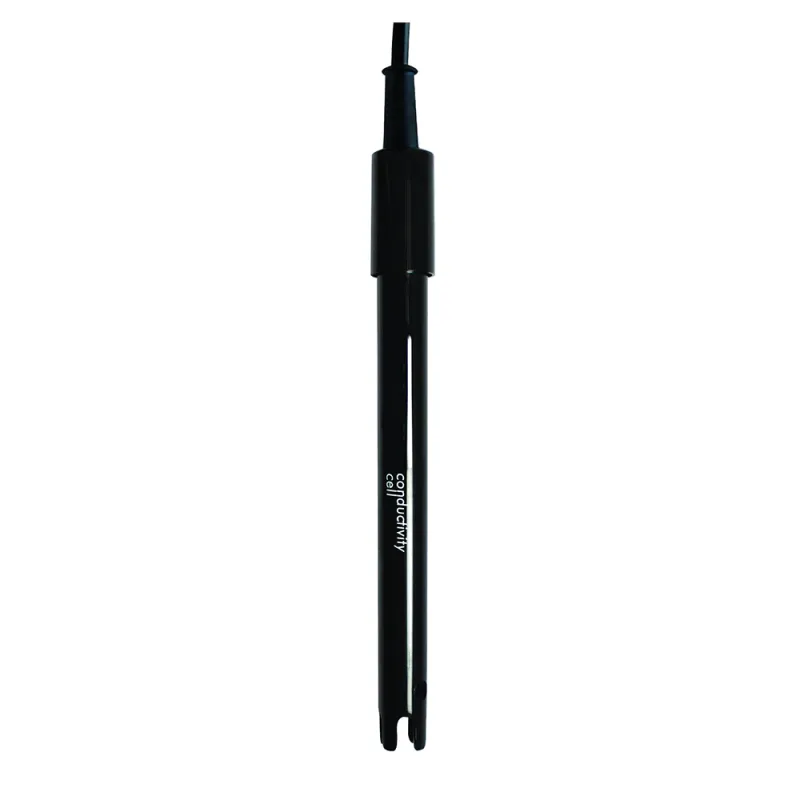

  • Includes 2301T-F conductivity electrode with built-in temperature sensor
  • Automatic temperature compensation (ATC)
  • 1 to 4-point calibration with auto-recognition of standard solutions
  • Calibration reminder and self-diagnosis functions
  • Large backlit LCD displays conductivity, TDS, salinity, resistivity, and temperature
  • GLP-compliant data management (500 memory groups)
  • USB data output for PC connection
  • Flexible electrode holder included
  • 3-year warranty on meter; 6-month warranty on electrode
Conductivity
Accuracy ±1 % F.S. ± 1 digit
Cell Constant 0,1/1/10 cm-1
Electrode connection BNC
Measuring Range Total: 0 to 200 mS/cm 0.00 to 19.99 μS/cm 20.0 to 199.9 μS/cm 200 to 1999 μS/cm 2.00 to 19.99 mS/cm 20,0 to 199,9 mS/cm TDS: 0 to 100 g/l Salinity: 0 to 100 ppt Resistivity: 0 to 100 MΩ*cm
Resolution 0.01 μS/cm; 0.1 μS/cm; 1 μS/cm; 0.01mS/cm; 0.1 mS/cm
Temperature Compensation 0 to 50 °C (automatic or manual)
More
Data output USB, PC-Link software
Dimensions 240 × 235 × 103 mm (with packing 270 × 250 × 180 mm)
Housing Protection Class IP54 (protection against dust and splashing water)
Memory locations 500 groups
Memory Values Numbering, date, time, measured value, unit, temperature
Power supply unit DC 9 V/300 mA
Weight 1 kg ( with packing 3,2 kg)
Temperature
Accuracy ±0.5 °C ± 1 digit
Connection Cinch
Resolution 0,1 °C
Measuring Range 0 to 100 °C

A complete set contains:


  • EC800 Conductivity Meter
  • 2301T-F Conductivity electrode with integrated temperature measurement
  • 602 Electrode holder
  • Standard solutions (84 μS/cm; 1413 μS/cm; 12.88 mS/cm).
  • manual
  • USB cable
  • PC software
  • Power supply unit
