MDF-DU702VH-PE VIP ECO -86°C Upright Freezer

The PHCbi MDF-DU702VH-PE VIP ECO -86°C Upright Freezer is a high-performance, energy-efficient ultra-low temperature freezer designed for intensive sample storage in modern laboratories. With a 729 L chamber and capacity for up to 576 standard 2" boxes, it offers maximum storage in a compact footprint, making it ideal for biobanks, pharmaceutical QC, biotech, and research facilities.

Using natural hydrocarbon (HC) refrigerants and a cascade refrigeration system with dual inverter compressors, the MDF-DU702VH-PE delivers rapid pull-down and outstanding temperature uniformity from -40°C to -86°C while reducing power consumption and heat output in the lab.

A full-colour LCD touch screen with microprocessor control gives precise temperature management and easy access to alarm history and operating data. USB export simplifies GLP/GMP documentation, and comprehensive alarms (power failure, high/low temperature, door open and filter) support continuous sample security.

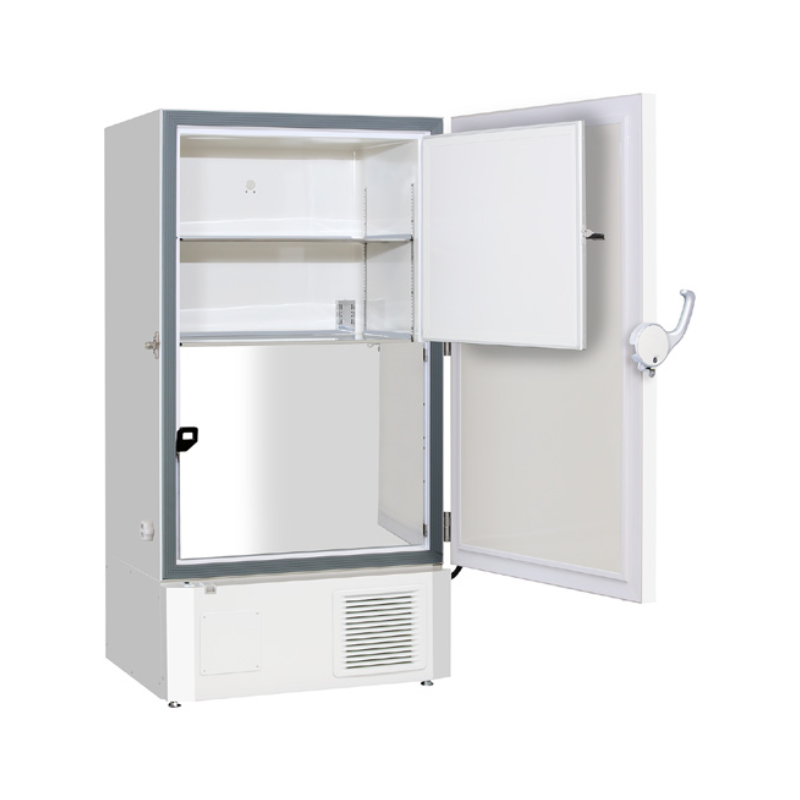

The cabinet uses VIP PLUS vacuum insulation with 80 mm wall thickness, insulated outer door, two inner doors and three heavy-duty shelves (max total load 515 kg), ensuring stable temperature, flexible racking layouts and efficient use of floor space.

Key Features

• 729 L ultra-low temperature upright freezer, -86°C performance
• Natural HC refrigerants for lower energy use and reduced environmental impact
• Dual inverter compressors for stable, efficient cooling in varying load and ambient conditions
• VIP PLUS insulation and optimized cabinet design for high capacity in a reduced footprint
• Colour LCD touch screen with intuitive menu, data logging and USB export
• Comprehensive visual, audible and remote alarms for critical conditions
• Three adjustable shelves, two inner doors and multiple access ports (one rear, two bottom) for flexible installation and monitoring
• Quiet operation at < 52 dB(A) and typical energy consumption around 7.7 kWh/24 h at -80°C setpoint
