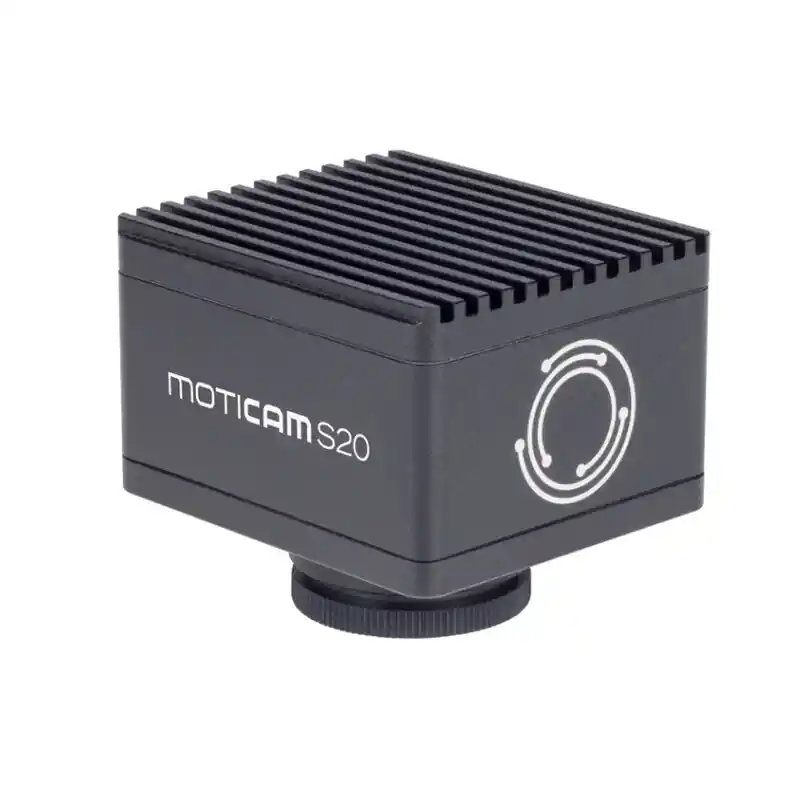

Motic Camera S20, colour, sCMOS, 1", 2.4µm, 20MP, USB 3.1

MOTICAM S SERIES NEW MOTICAM S SERIES Motics new sCMOS cameras, designed by German engineers and manufactured by professionals represent an impressive impetus to microscope camera performance. With a member of this product line the door for new application fields opens wide. The accelerated data readout enables to work on fast phenomena in biology and industry. MOTIC IMAGES PLUS 3.0 SOFTWARE Our well-known Motic Images software, always with a cost-free upgrade option is included in all camera packages and enables to view images at maximum quality, capture, edit, measure and report the result... all these features are ready to work on your PC or laptop. MAXIMUM DETAIL If you are looking for maximum resolution for your monitor or printouts, the Moticam S20 is the right choice for you. With a maximum frame rate of 18 frames per second, the Moticam S20 can handle large data volumes when recording at the highest resolution. When it comes to the smallest details, the Moticam S20 is the solution for you. MOTICAM S20 Sensor type: sCMOS Sensor size: 1" Imaging area: 15.86 mm (diagonal) Number of pixels: 20MP Live display mode via USB: 5472x3648, 2736x1824 pixels Pixel size: 2.4x2.4μm Scan mode: Progressive Shutter mode: Rolling shutter Data transfer: USB 3.1 Max. frame rate (fps): 5472x3648 @ 18fps, 2736x1824 @ 50fps Exposure time:15 μsec - 2 sec Operating temperature: From -10 to +60 degrees Celsius, non-condensing Sensitivity: 461mV(G) @ 1/30 sec Supported instruments: TWAIN, SDK and DirectShow Driver Supported operating systems: Windows 7/8/10, MAC OSX, Linux or higher Minimum computer requirements: 2GHz dual core - RAM memory 2GB - Video memory min. 512 MB Lensconnection: C-mount Software: Motic Images Plus 3.0 for Windows, OSX and Linux Software features: Still image and video recording, live and still image measurement, image settings, white balance, automatic and manual exposure, individual lens calibration system Power supply: 5V (from USB port) Scope of delivery: CS ring adapter, 3.1 USB cable, Motic 4-position calibration slide, Motic Images Plus 3.0 for PC/OSX/Linux
