Motic LUMOS FL LED high power light source (BA410E, PA53 BIO, AE31E)

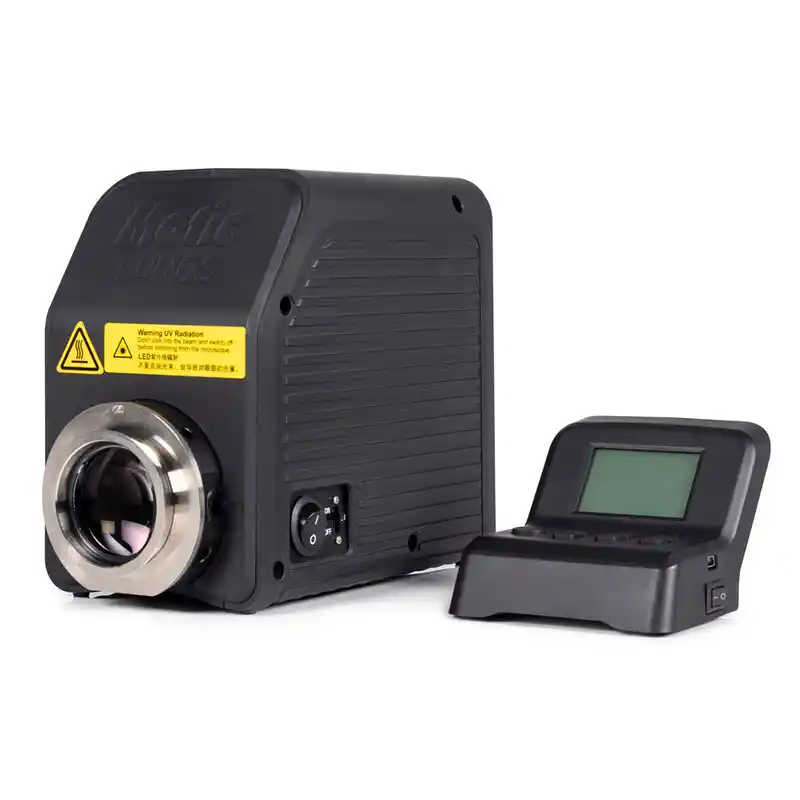

Moitc LUMOS Lumos is a modern LED fluorescence light source that offers enormous advantages over older technologies such as mercury arc lamps. It provides 20,000 hours of uninterrupted imaging, saves time and energy without constant lamp replacement or alignment, and is environmentally friendly without producing toxic waste. Lumos offers blue, green and UV LED channels and delivers sharp images when analysing fluorescence-labelled samples, especially in combination with our PA53 series microscopes, the BA410E and the AE31E. With our Motic Fluorescence Imaging Software Plug-In (currently only available with the PA53 BIO FS6) for Motic Images Plus 3.0, you can take your system's performance to a higher level by easily overlaying images from multiple LED channels to create beautiful, sharp and detailed images for better insight. Lumos is incredibly easy to install and user-friendly, including a wireless control cross and USB computer connection. You can start working immediately after switching on, without any waiting! Specifications LUMOS (1101011700231) Model: LUMOS FL LED Light sources*: High-performance colour LED (UV, B, G) x3 Channels: UV (peak at 395 nm), blue (peak at 460 nm), green (peak at 540 nm) Output power: UV (760mW), blue (610mW), green (530mW) Estimated LED service life**: 20,000 hours or approx. 8 years LED switching speed: Milliseconds Operating ambient temperature: 5 to 40 ºC Operating pressure in the environment: 75 kPa to 106 kPa Connection of the control cross to the system: Wireless Connection to computer and/or microscope: USB interface (with PA53 BIO series) Power requirements: 130 W (15 V/8.66 A) DC power pack included Dimensions (W x L x H): 108 mm x 200 mm x 162 mm Weight: 2.7 kg * A single white full-spectrum LED is not used to ensure optimal excitation for the selected channel. ** Estimated service life: varies depending on actual operating conditions.
