Elevate your laboratory capabilities with the NANOCOLOR UV/VIS II Spectrophotometer by MACHEREY‑NAGEL. Designed for unmatched precision and efficiency, this advanced spectrophotometer seamlessly integrates premium optics with intuitive usability, making it the ideal solution for water and wastewater analysis in environmental, industrial, and municipal labs.
✅ Wide Wavelength Range (190–1100 nm)
Covers UV to visible spectrum, powered by a deuterium lamp for UV and halogen lamp for visible light, enabling comprehensive testing across applications.
✅ Exceptional Accuracy & Reliability
Wavelength accuracy: ±1 nm
Photometric accuracy: 0.005 A (0.0–0.5 A); <1% up to 2.0 A
Stray light: <0.05%
Photometric linearity: <0.5% at ≤2 A
✅ Rapid, Automated Operation
Complete scan in under 1 minute
Automatic wavelength calibration & selection (manual and barcode options also available)
✅ Versatile Measuring Modes
Over 200 pre-programmed tests plus 99 fully programmable methods
Supports absorbance, transmission, kinetics, scans, factor and nephelometric turbidity measurement (0.1–1000 NTU @ 860 nm, ISO 7027 compliant).
✅ Flexible Sample Handling
Accepts round tubes (16 mm) and rectangular cuvettes (10–50 mm), insensitive to external light — enabling quick, cover-free measurements.

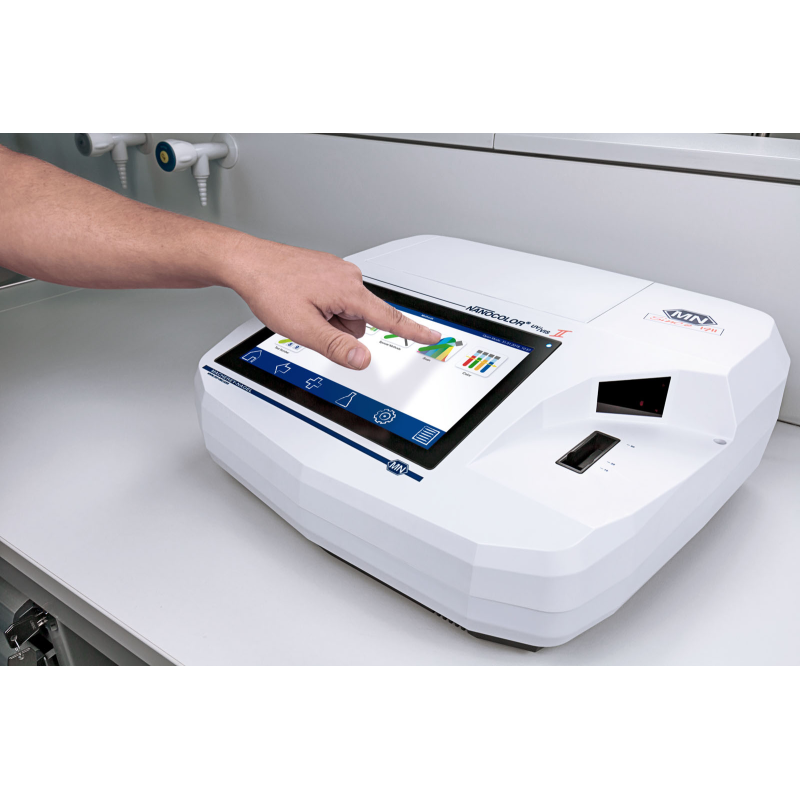

✅ Large, Intuitive Touchscreen Interface
10.1″ LED backlit HD display with anti-reflective, capacitive touchscreen
Multi-language support (EN, DE, FR, ES, IT, and more)
✅ Robust Data Management & Connectivity
Stores up to 5000 data sets, 100 spectra, GLP compliant
Interfaces: LAN, RS232, USB host & function
Easy updates via USB stick
✅ Built for Lab Environments
Operates from 10–40 °C, up to 80% RH
Compact design (400 x 440 x 170 mm), 6.5 kg
Comes with comprehensive kit: calibration cuvette, power & USB cables, touch pen, protective cover, cleaning cloth & certificate.
✅ Peace of Mind
CE certified
Backed by a 2-year warranty
Ideal for laboratories performing routine water and wastewater testing, environmental monitoring, industrial process control, and educational research.

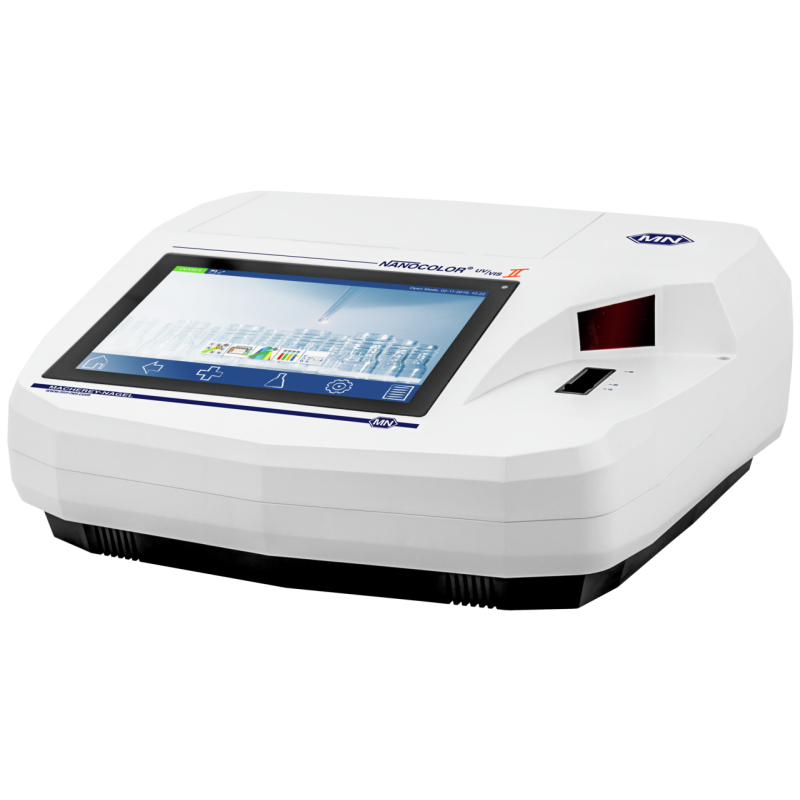

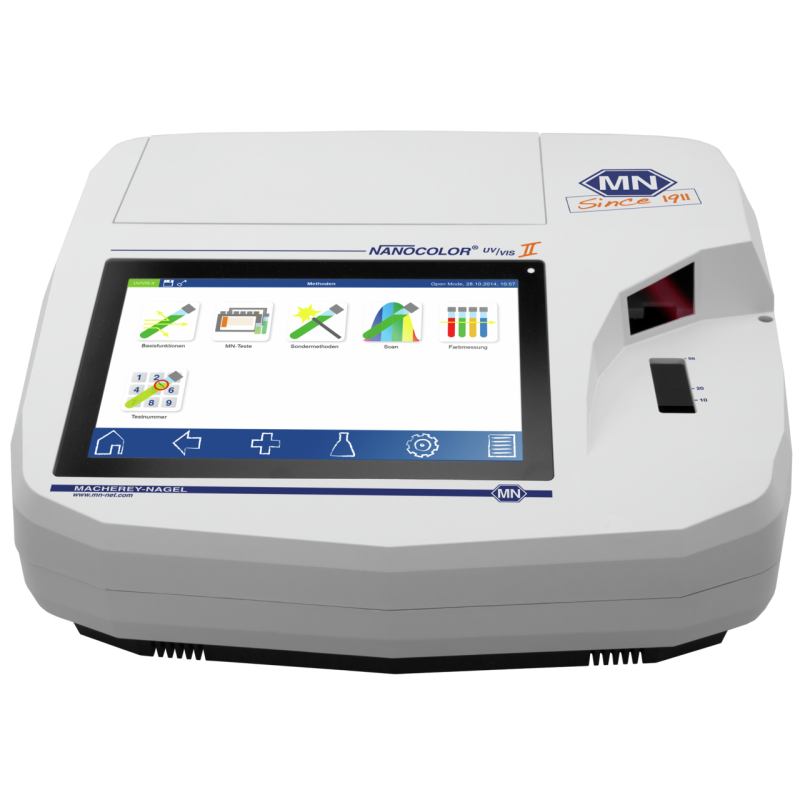

NANOCOLOR UV/VIS II Spectrophotometer
Quick start guide & manual
Power & USB cables, USB stick
Calibration cuvette
Touch pen, protective cover, cleaning cloth
Factory certificate
| Technical Specifications | |
| CE certified | Yes |
| Cuvette slot | Round tubes 16 mm OD, rectangular cuvettes 10 mm, 20 mm, 40 mm, 50 mm |
| Data memory | 16 GB Micro SDHC card, 5000 measured data sets, 100 spectra and color measurements, GLP-conform |
| Dimensions (L x W x H) | 400 x 440 x 170 mm |
| Display | 10.1″ LED backlit HD display, anti-reflective cover glass with projected capacitive touch screen (PCAP) |
| External light | Insensitive to external light, fast measurements without cuvette slot cover |
| Gross weight (incl. packaging) | 10400 g / 22.93 lbs |
| Hazardous material | No |

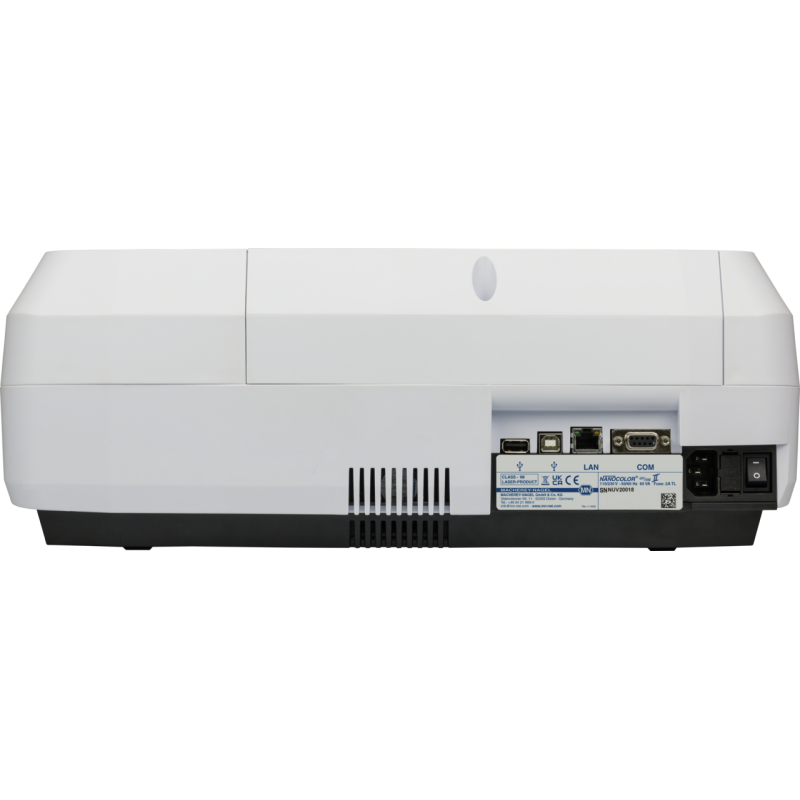

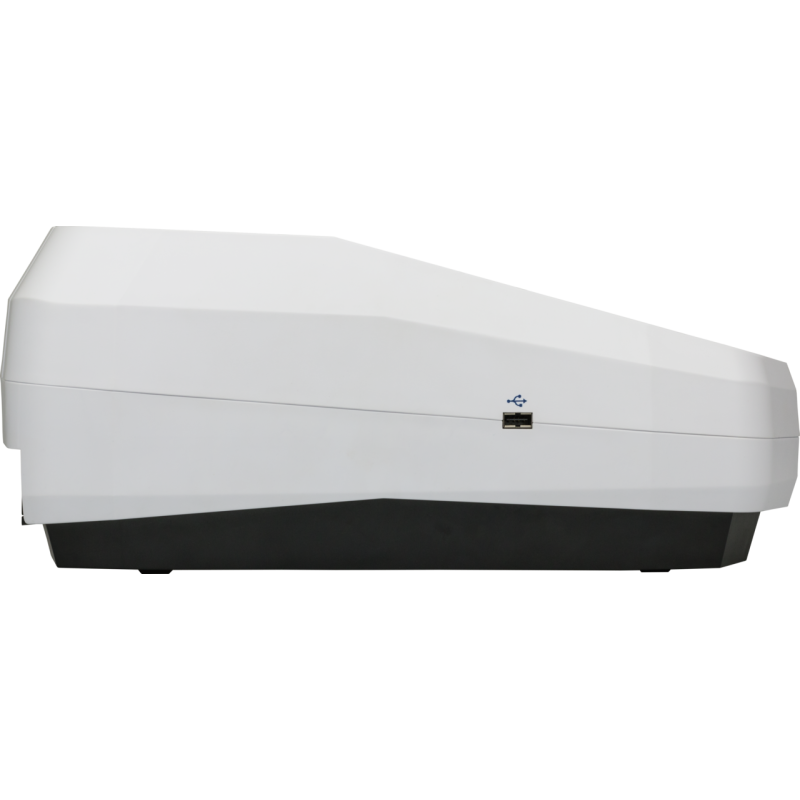

| Interfaces | LAN, 2 x USB (host), 1 x USB (function) and RS232 |
| Internal quality control | With NANOCONTROL NANOCHECK 2.0 |
| Language | DE / EN / FR / ES / PT / PL / HU / NL / CZ / RO / IT |
| Light Source | Halogen lamp (visible range), Deuterium lamp (UV range) |
| Measuring Modes | More than 200 pre-programmed tests and special methods; 99 fully programmable methods; absorbance; transmission; factor; kinetics; scan; nephelometric turbidity measurement |
| Operating range | 10–40 °C (50–104 °F), max. 80 % relative humidity (non-condensing) |
| Operation | Barcode technology, icon-based menu guidance, touch screen |
| Optical system | Monochromator |
| Packaging dimensions | 533 x 468 x 270 mm / 20.98 x 18.43 x 10.63 Inch |
| Photometric accuracy | 0.005 A at 0.0–0.5 A; 1 % at 0.5–2.0 A |
| Photometric linearity | < 0.5 % at ≤ 2 A, ≤ 1 % at > 2 A |
| Photometric range | ± 3.0 A in wavelength range 200–900 nm |
| Power supply | 110–240 V AC, 50 / 60 Hz |
| Preprogrammed tests | NANOCOLOR tube tests and standard tests |
| Scan speed | 1 complete scan in less than 1 min |
| Scope of delivery | Photometer, manual (quick start guide), touch pen, protective covering, power cable, USB cable, USB stick, calibration cuvette, certificate and cleaning cloth |
| Spectral bandwidth | < 2 nm |
| Stray Light | < 0.05 % |
| Turbidity measurement | Nephelometric turbidity measurement at 860 nm (based on ISO 7027), 0.1–1000 NTU |
| Type | Spectrophotometer with reference detector technology (RDT) |
| Update | Free via USB stick |
| Warranty | 2 Year(s) |
| Wavelength | 190–1100 nm |
| Wavelength accuracy | ± 1 nm |
| Wavelength calibration | Automatic |
| Wavelength reproducibility | <0.5 nm |
| Wavelength resolution | 0.1 nm |
| Wavelength selection | Automatic, Barcode, Manual |
| Weight | 6.5 kg |
